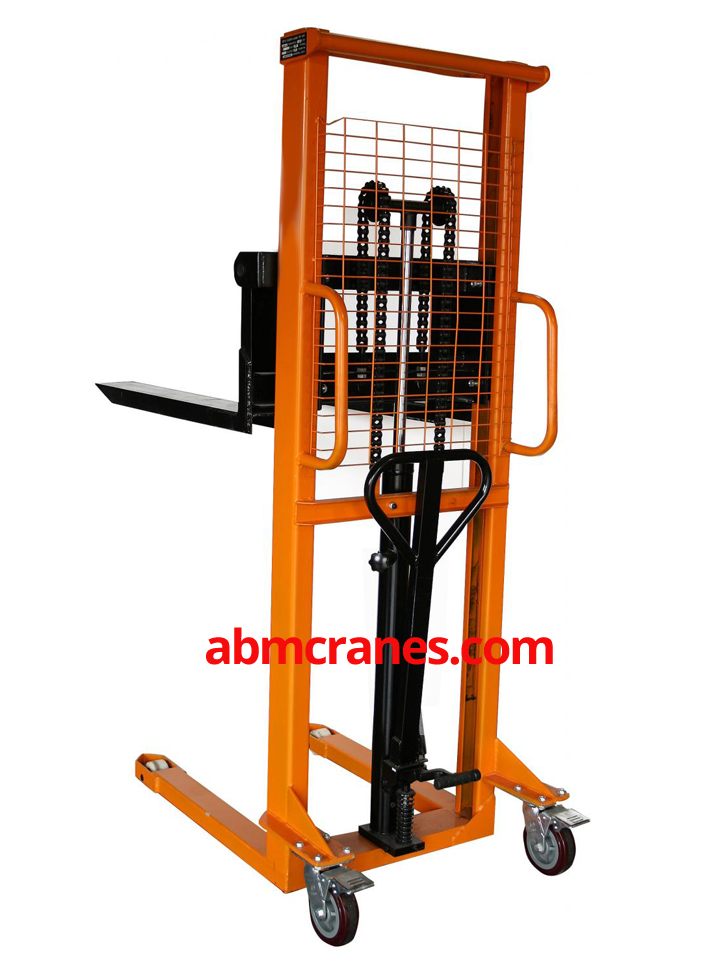

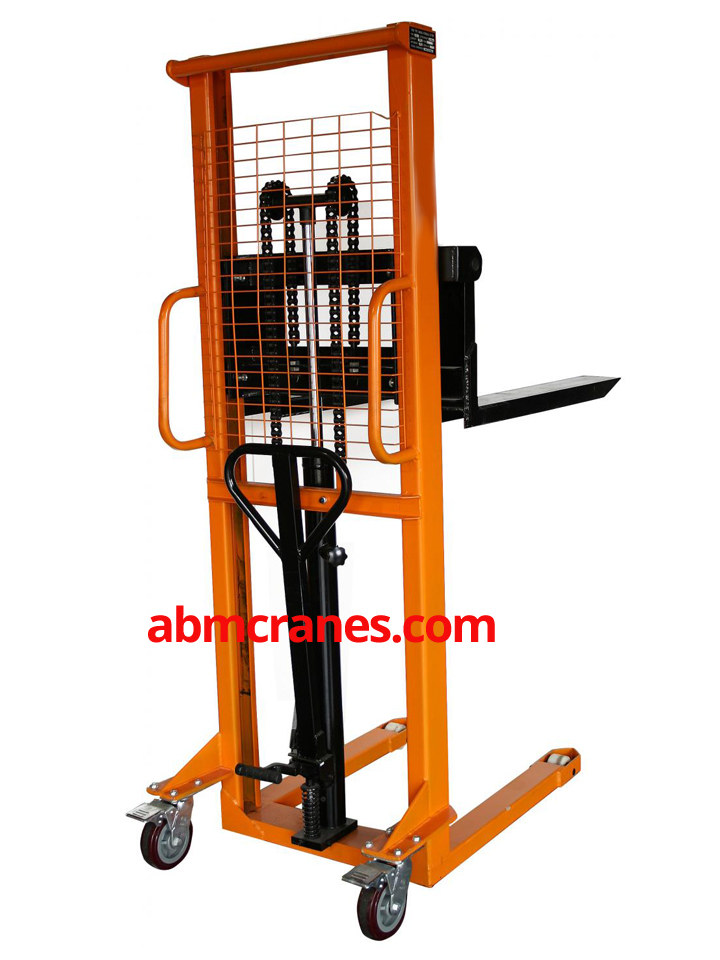

MODELS - HYDRAULIC HAND STACKER
Simple, easy way to lift, lower and transport heavy loads with minimum effort. Handles standard pallet size, features adjustable width forks and outrigger legs.
FEATURES :
- Small turning radius makes it easier to make sharp turns.
- Controllable direction handle.
- Dual pump for easier lifting.
- Top Quality Hydraulic pump & Cylinder.
- Protection device for steering wheel and safety guard for load roller.
- Top of stroke bypass valve built in.
| Item Code No. | ABM-MH-6281 | ABM-MH-6282 | ABM-MH-6283 |
| Capacity in Kg. | 500 Kg. | 1000 Kg. | 2000 Kg. |
| Lifting Height in mm | 1525 | 1525 | 1525 |
| Overall Height Retracted in mm | 2200 | 2200 | 2200 |
| Length of Fork in mm | 800 | 800 | 800 |
| Height of Fork Lowered in mm | 100 | 100 | 125 |
| Fork Width in mm | 550 | 600 | 600 |
| Total Length in mm | 1450 | 1500 | 1550 |
| Total Width in mm | 750 | 800 | 850 |
