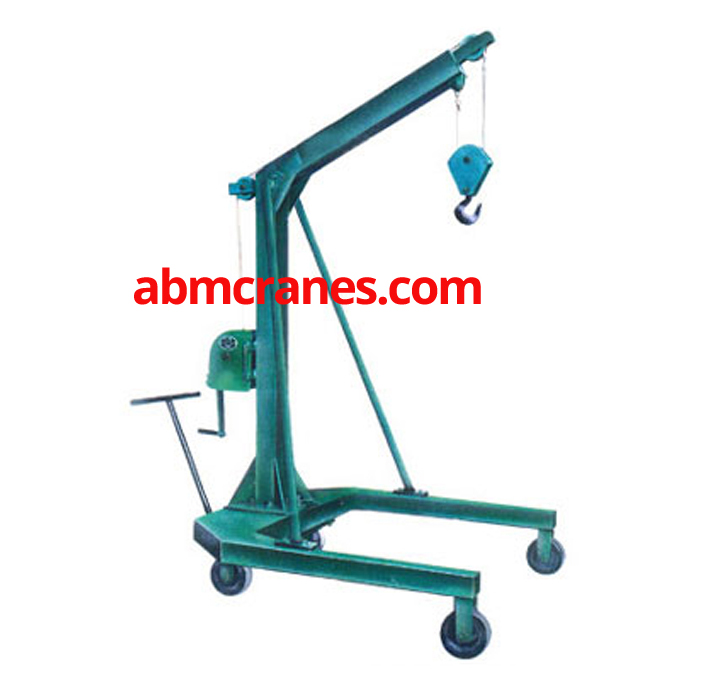

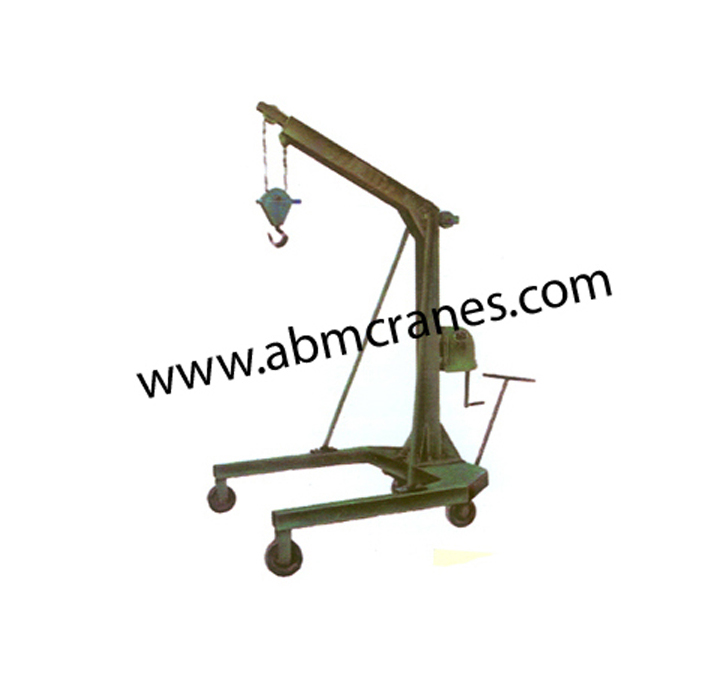

JIB CRANES (Moveable Floor Jib Crane) (Fixed Jib Crane also available)
APPLICATION ·
A manual mobile Material Handeling Machine suitable for indoor and outdoor services. It is the basic requirement in all the Motor Garages and Machine shops for loading and unloading of Engines and Materials from the Vehicles.
SALIENT FEATURES ·
It can be fully dismantled in four parts as Bottom Carriage, Column and JIB, Tie Rods and Winch Assembly. Easy Steering. · Maneuverable Within Confined Spaces. Ideal for general handling of goods in the Ware Houses and Workshops.
| Item Code No. | ABM-MH-6290 | ABM-MH-6291 | ABM-MH-6292 | ABM-MH-6293 | ABM-MH-6294 |
| Capacity in Tons | 0.5 Ton | 1 Ton | 2 Ton | 3 Ton | 5 Ton |
| Overall Height | 2700 | 2800 | 2800 | 3000 | 3000 |
| Overall Length | 1600 | 1650 | 1700 | 2000 | 2000 |
| Overall Width | 1000 | 1300 | 1300 | 1500 | 1500 |
| Clear Span Between Fork | 840 | 1140 | 1140 | 1300 | 1300 |
| Lift - Max | 2100 | 2100 | 2100 | 2200 | 2200 |
| Wheel Dia. | 145 | 145 | 145 | 200 | 200 |
